Configure Boxes and Shipping Methods in Magento

To ship your products correctly, you need to configure the box dimensions and shipping options in Magento. Follow the process listed below:

Box Configuration:

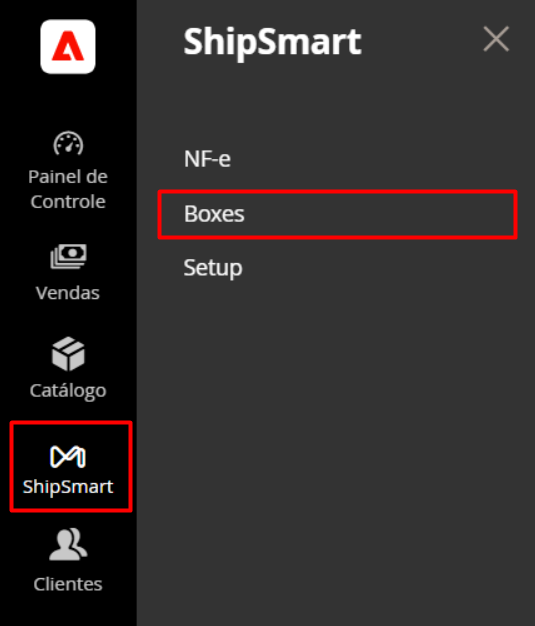

1. Go to the ShipSmart > Boxes menu in the Magento admin panel.

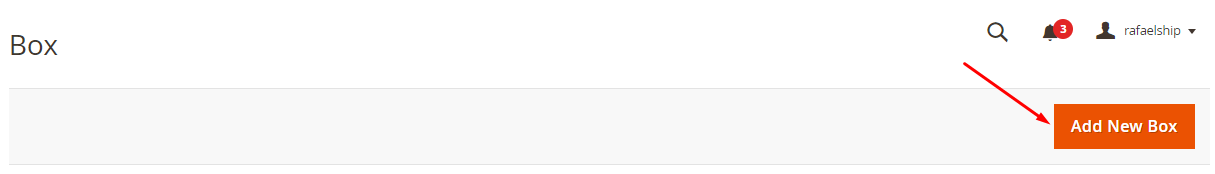

2. Click on Add New Box to add a new box.

3. Fill in the box information with the following details:

   • Description: Box name, for identification.

   • Width: Box width (in centimeters).

   • Height: Box height (in centimeters).

   • Depth: Box length (in centimeters).

   • Max Weight: Maximum weight supported by the box (in kilograms).



4. Remember to save the information.

Shipping Methods Configuration:

Now, you need to set up the shipping options, enabling your store to offer automatic quotes at checkout.

Follow the steps below to configure the shipping methods in Magento:

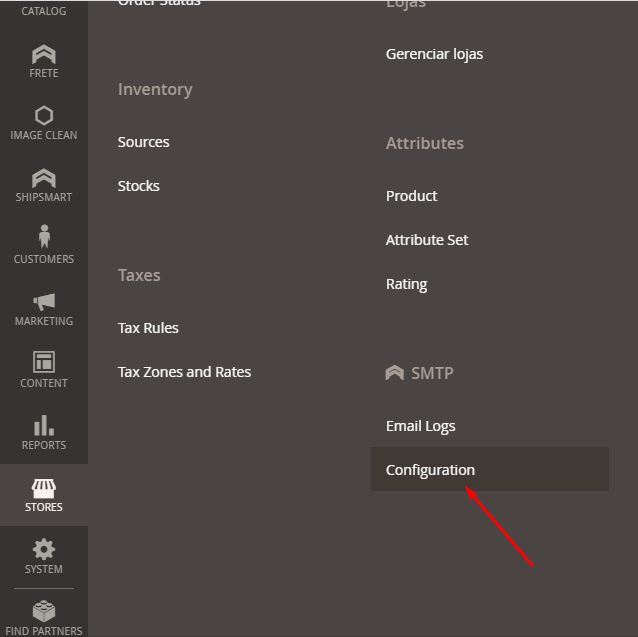

1. In the Magento dashboard, go to Stores > Configuration

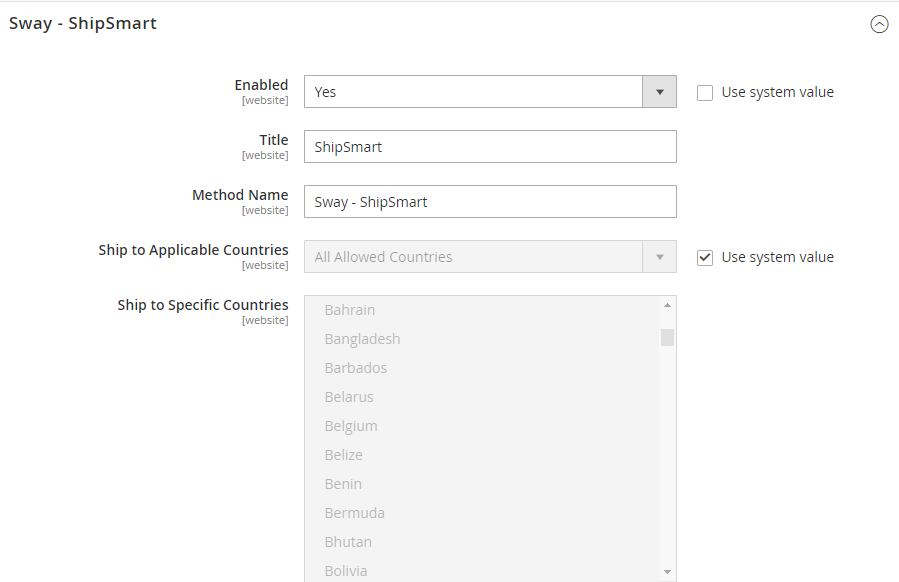

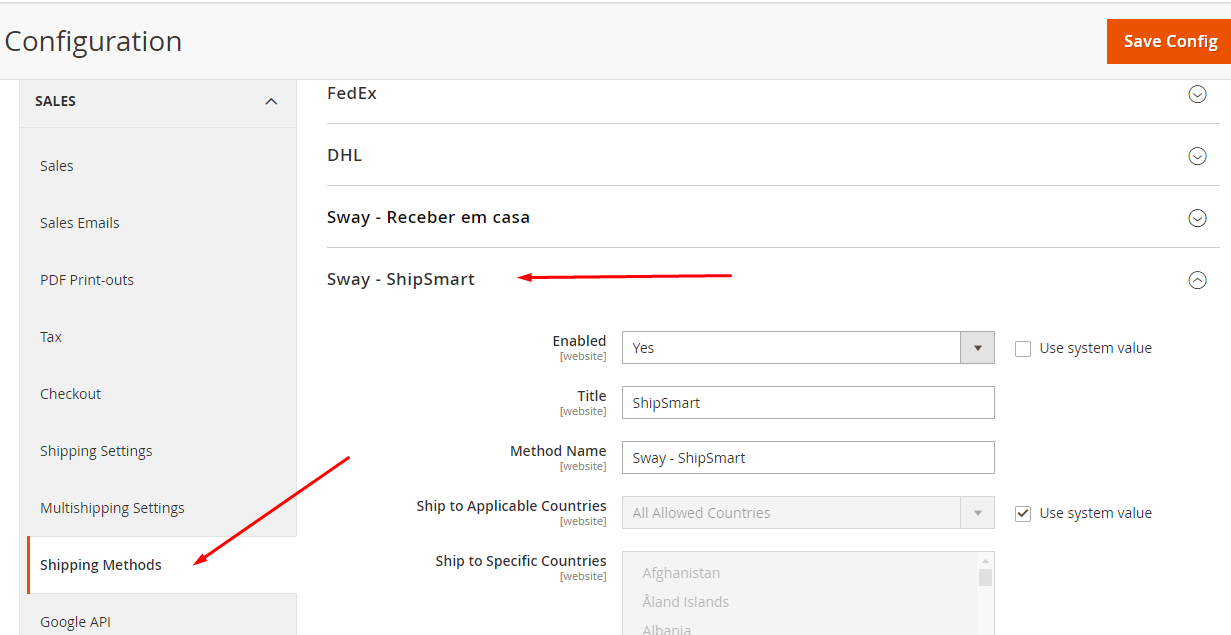

2. Then, go to Shipping Methods > Sway – ShipSmart.



3. Configure the following information:

   • Enabled: Select "Yes" to activate the shipping method.

   • Title: Set the name that will appear on the store’s front end (checkout).

   • Method Name: Enter "Sway – ShipSmart" as the method name.

   • Ship to Applicable Countries: Choose "All Allowed Countries" to ship to all countries or "Specific Countries" to select specific countries.

   • Ship to Specific Countries: If you chose "Specific Countries", select the desired countries for shipping.



4. Show Method if Not Applicable: Select "No" to hide the method if it is not applicable.

5. Sort Order: Set the position in which the method will appear at checkout.

Product Fields Configuration:

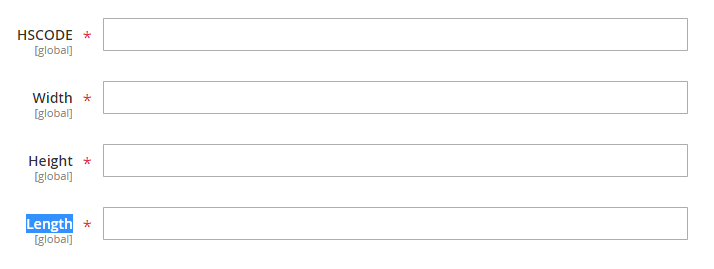

After the module installation, all products need to have the following fields configured in Catalog > Products:

• HSCODE: Harmonized System Code. Learn more about the HS Code.

• Width: Product width (in centimeters).

• Height: Product height (in centimeters).

• Length: Product length (in centimeters).



Next step:

How to ship an order through ShipSmart on Magento
